How to Choose the Right VFD Variable Frequency Drive?

Choosing the right vfd variable frequency drive is not a simple matter of matching horsepower. The real decision begins with the motor, the driven load, and the operating environment. A pump, conveyor, fan, and crusher demand different control behavior. A dusty workshop also creates different risks than a clean production room.

Power-electronics pioneer Bimal K. Bose wrote, “Power electronics is the technology of the future.” His observation remains relevant because modern drives connect electrical efficiency with practical machine control. Yet efficiency alone should not decide the purchase. Engineers must examine motor voltage, full-load current, overload capacity, acceleration time, braking needs, and speed range. A drive that looks affordable may struggle during a cold start or a sudden load increase.

Experience matters here. Check the motor nameplate beside the VFD specification sheet. Do not rely on horsepower alone. Confirm the drive’s continuous current rating, enclosure protection, ambient temperature limit, and cooling method. For long cable runs, consider reflected-wave stress and output filtering. For critical equipment, review bypass options, fault history, network communication, and local service support.

There is no perfect selection checklist. A technically correct drive can still fail when installation details are ignored. I have seen oversized units waste cabinet space, while undersized units trip during normal production. This guide will compare these practical factors and clarify where vector control, sensorless operation, or simple V/Hz control makes sense. The goal is not the most advanced vfd variable frequency drive. It is the safest, most dependable match for the machine.

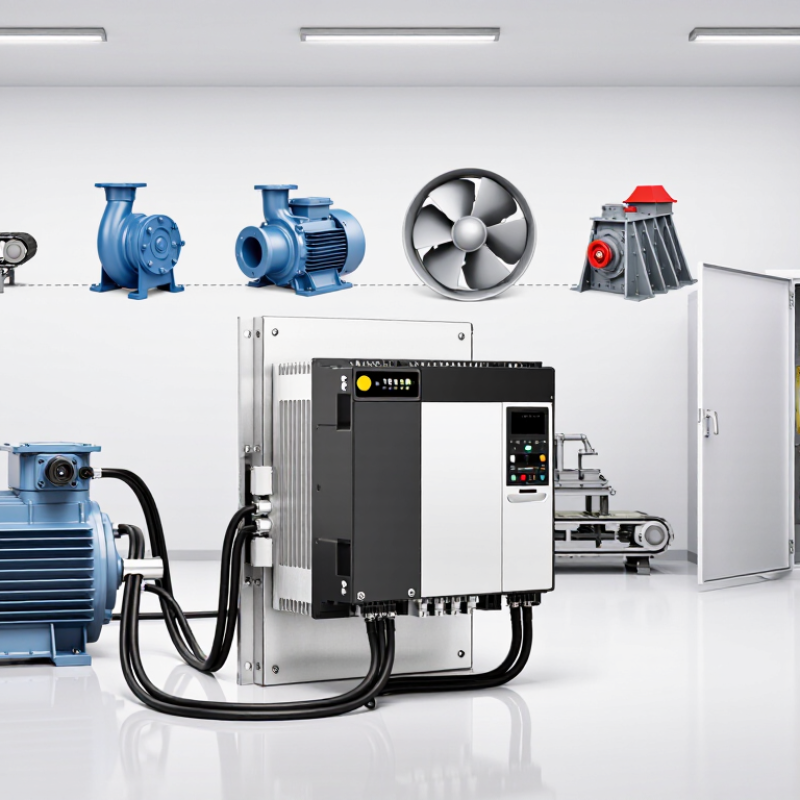

How to Choose the Right VFD Variable Frequency Drive?
Table of Contents [Hide]
1 Understanding What a VFD Is and How It Controls Motor Speed
2 Defining Motor, Load, and Application Requirements
3 Matching VFD Ratings with Voltage, Current, and Power
4 Selecting Essential Features, Controls, and Protection Functions
5 Checking Installation Conditions, Compatibility, and Long-Term Support

Understanding What a VFD Is and How It Controls Motor Speed

How to Choose the Right VFD Variable Frequency Drive?

Understanding What a VFD Is and How It Controls Motor Speed

A variable frequency drive, or VFD, controls an AC motor by changing the frequency and voltage supplied to it. Frequency sets the motor’s operating speed. Voltage supports the magnetic field and helps produce usable torque.

Inside the drive, incoming AC power is converted into DC power. A switching inverter then creates a controlled AC output. By adjusting its pulse pattern, the VFD can provide smooth acceleration, deceleration, and speed regulation. In practical installations, this reduces mechanical shock, belt wear, and unnecessary energy use. However, a VFD is not simply a speed dial. Motor load, starting torque, cooling, and cable length all affect performance. I have seen settings copied from another machine cause unstable starts. That shortcut often needs correction.

Tips: Match the drive’s rated current to the motor nameplate, not horsepower alone. Check the required input voltage, overload capacity, braking method, and enclosure rating. Use the motor’s control mode recommended by the manufacturer. Test acceleration and deceleration with the real load. Start conservatively. A qualified technician should verify wiring, grounding, protective devices, and parameter settings before operation. Also consider the environment. Dust, heat, moisture, and frequent starts can shorten service life. The right VFD should fit the complete motor system, not just the motor label.

Defining Motor, Load, and Application Requirements

How to Choose the Right VFD Variable Frequency Drive?

Defining Motor, Load, and Application Requirements

Choosing a VFD begins with the motor, not the catalog. Record the motor’s rated voltage, current, frequency, speed, and power from its nameplate. Match the drive to the motor’s full-load current, rather than horsepower alone. A 15 kW motor may need different capacity under heavy starting conditions. Confirm whether the motor uses constant-torque or variable-torque duty.

Study the load carefully. Conveyors, mixers, and hoists often demand high starting torque. Pumps and fans usually require less torque as speed decreases. Check acceleration time, braking needs, reversing frequency, and expected overload duration. A conveyor carrying wet material can behave differently each morning. It may start smoothly today and trip tomorrow.

The installation environment also affects selection. Measure cabinet temperature, altitude, dust, moisture, and available ventilation. Derating may be necessary in a hot enclosure. Consider shielded motor cables, grounding, and electrical noise before commissioning. In field work, I have seen a correctly sized drive fail because the motor cable was too long and poorly grounded. That lesson remains uncomfortable but useful. Leave room for honest review. The first load estimate is sometimes wrong. Record actual current during startup, running, and peak production, then adjust the settings carefully. A qualified technician should verify protection, parameter values, and safe operating limits before energizing the system.

Matching VFD Ratings with Voltage, Current, and Power

How to Choose the Right VFD Variable Frequency Drive?

Matching VFD Ratings with Voltage, Current, and Power

Choosing the right VFD starts with the motor nameplate, not its horsepower alone. Confirm the supply voltage, motor voltage, full-load current, and frequency. The VFD input rating must suit the available electrical supply. Its output voltage must match the motor. A mismatch can cause poor torque, overheating, or nuisance trips. Small details matter here.

Select the drive by current and duty, then use power as a cross-check. The continuous output current should meet or exceed the motor’s full-load current. For conveyors, mixers, and compressors, check overload capacity and acceleration requirements. A heavy-duty application may need extra current for short periods. Ambient temperature, enclosure cooling, cable length, and switching frequency can also reduce usable capacity. Read the derating table carefully.

During commissioning, measure actual running current with a properly rated meter, especially when the motor drives a changing load. Compare the reading with the drive setting and motor nameplate. Never assume a larger VFD automatically solves every problem. It may hide incorrect settings, poor ventilation, or mechanical friction. Not just horsepower. Recheck the selection after installation. Site conditions often expose what the catalog cannot.

Selecting Essential Features, Controls, and Protection Functions

Choosing the right VFD starts with the machine’s working conditions, not its price. Define the motor’s rated current, voltage, speed range, and starting load. A conveyor may need steady torque, while a fan usually requires smoother, lighter control. Select a drive with enough overload capacity for real operating conditions, not only normal running current.

Control functions should match the process. Sensorless vector control can improve low-speed torque, while PID control helps maintain pressure, flow, or temperature. Check acceleration and deceleration settings carefully. A heavy load stopping too quickly can trigger overvoltage faults. Built-in braking control may be useful, but braking resistors still need correct sizing. During commissioning, record motor current at several speeds. Small differences often reveal poor tuning or mechanical resistance.

Tips: Review protection functions before installation. Look for overload, overcurrent, overvoltage, undervoltage, overheating, phase-loss, and short-circuit protection. Safe torque off can reduce unintended motor movement during maintenance, but it should not replace the site’s complete safety system. Consider the enclosure rating, cooling method, ambient temperature, and dust exposure. An IP-rated cabinet may still fail if filters remain blocked. Keep cable length and electromagnetic compatibility in mind. I have found that many selection errors come from ignoring the control panel environment. The specification sheet looked correct, but the installation conditions were not.

Checking Installation Conditions, Compatibility, and Long-Term Support

Check installation conditions before choosing a VFD. Record motor voltage, rated current, frequency, enclosure rating, and ambient temperature. A dusty workshop may require stronger protection than a clean control room. Measure cabinet space and airflow, not just the drive dimensions. I once saw a suitable drive overheat because a filter blocked its cooling path. The specification was correct, but the installation was not.

Compatibility involves more than matching horsepower. Confirm the motor’s insulation system, cable length, grounding method, braking needs, and control signal type. Review starting torque and the expected speed range. A pump, conveyor, and fan can need different control behavior. Test the drive with the actual motor when possible. Small differences matter. I would also check electromagnetic interference risks near sensors and communication cables. My first assessment is not always right, so I leave room for verification.

Tips: Keep a written checklist. Ask for thermal derating data, fault-history access, spare-part availability, firmware documentation, and qualified technical support. Confirm who will answer urgent questions after commissioning. Long-term support is often overlooked. It should not be. Choose equipment with clear manuals, realistic service coverage, and training options. Document the final settings, even if the system seems simple. A forgotten parameter can become tomorrow’s unexplained trip.

How to Choose the Right VFD Variable Frequency Drive?

Checking installation conditions, compatibility, and long-term support before selecting a variable frequency drive.

How to read this chart: This illustrative five-point engineering assessment shows how ready a project is in four key VFD selection areas. Confirm the site temperature, altitude, enclosure requirements, supply voltage, motor current, motor frequency, overload duty, control signals, communication requirements, spare-parts availability, and service capability before placing an order. Actual VFD limits must always be checked against the applicable product datasheet and installation standards.
