PLEASE NOTE: Effective 2019, we no longer supply Control Techniques variable frequency drives and components. We have drives from several other manufacturers which can meet or exceed the performance characteristics of the Control Techniques line. Simply complete the form below, or contact us with the model of your current or obsolete Control Techniques drive and we’ll be glad to identify a suitable replacement.

Also, the Fincor and Saftronics lines of AC variable frequency drives, DC variable speed drives, and reduced voltage starters were once owned by Emerson but have been obsolete for several years. However, we have many years’ experience working with these drives and can quickly identify replacements capable of exceeding the quality and performance of these older drive technologies. For a suitable replacement, fill out the form below or contact us with your drive or application requirements, and we’ll handle it from there!



Saftronics

 (Obsolete) Saftronics VG10 – Dynamic Torque Vector AC Drive (Obsolete FINCOR Series 6600)
  • Three control methods
    • Closed Loop Flux Vector
    • Open Loop (Sensorless) Vector
    • Volts / Hertz
  • 100 KA Short Circuit Rating
  • Motor Auto Tuning for optimum performance
    • Full Dynamic Tuning (spinning motor)
    • Static Tuning (loaded motor, not spinning)
    • On-Line Tuning (continuous tuning while running)
  • Keypad: Graphic back-lit LCD combined with digital LED, Copy Function, 5 lines x 13 characters
  • Uniform programming parameters with GP10 and PC10
  • Soft Switching Technology to eliminate output filters
    • 10°C – 50°C (+14°F -122°F)
  • Serial Communication (RS485 Modbus Standard; Lon Works, Device Net, Metasys N2, Profibus-DP, Siemens, and Interbus-S optional)
  • Dynamic Braking built in and includes 3% DB resistor at 10HP and below
  • Dual Motor Parameter Table
  • “Side by Side” mounting with zero clearance to optimize panel space, 30HP and below
  • NEMA 1,12* or 4*, Open Chassis
  • Saflink compatible

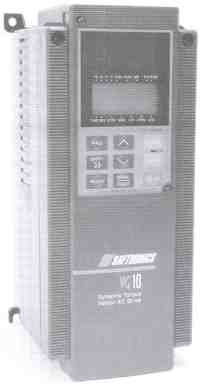

Saftronics VG10 - Dynamic Torque Vector AC Drives

Voltage / Horsepower - Saftronics VG10 - Dynamic Torque Vector AC Drives CE, cUL & UL Approved.
Palm Pilot Saflink Kit SAFLINK is an innovative tool designed for easier programming and trouble-shooting of Saftronics drives.Please visit their Web site at www.saftronics.com and tryout demo version. SAFLINK is an innovative tool designed for easier programming and trouble-shooting of Saftronics drives.�

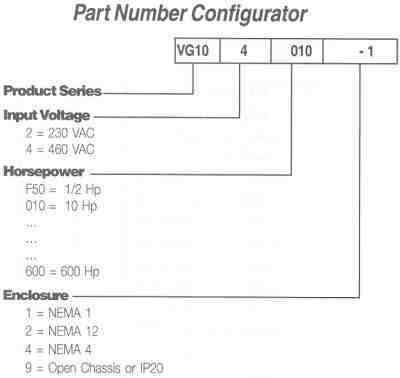

VG10 Part Number Configurator

To purchase any Saftronics drives or information, contact us at: Phone (815) 725-9696, Toll Free (866) 492-9888, Fax (815) 725-9393 or E-mail sale@olsenelectricnj.com
